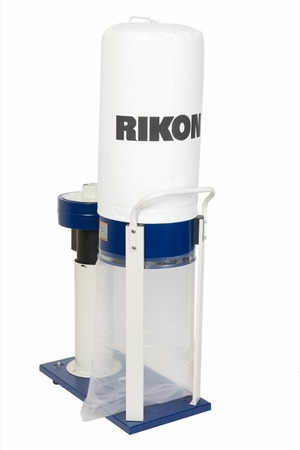

RIKON 60-100 1HP Dust Collector
1 HP Dust Collector #60-100 is a great size for use in a small shop. Single 4" dust port draws 650 CFM, more than enough vacuum power for big chip makers, like jointers and planers. Built-in casters and handle make moving it about easy. Includes top cloth filter bag, lower disposable plastic chip bag, quick-release band clamps, and safety on/off switch. Collector is wired for use with 3-wire 120V receptacles.
Features and Benefits:
1 HP Develops 640 CFM
4" Dust Port inlet for attaching to a single machine
Includes casters for easy mobility around the shop
Quick release band clamps
Includes fabric top filter bag and clear plastic disposable bottom bag
Warranty: 5 year
Specifications:
| Motor Horsepower: | 1 HP |
| Motor Amps: | 7 |
| Motor Volts: | 115V, 60Hz |
| Motor RPM: | 3450 |
| Blower Wheel Diameter: | 9 inch |
| Blower Wheel Material: | Steel |
| Air Flow: | 640 CFM |
| Sound Rating at 3 Feet: | <78 dB |
| Bag Filtration: | 5 Microns |
| Bag Diameter: | 14-3/4 inch |
| Bag Capacity: | 2.1 Cubic Feet |
| Bag Length: | 26 inch |
| Hose Connection: | 1@4 inch |
| Overall Length: | 32-1/4 inch |
| Overall Width: | 15 inch |
| Overall Height: | 60 inch |
| Overall Net Weight: | 60 lbs. |
| Intake Funnel Size: | - |
| Maximum Funnel Height: | - |
| Dust Hose Size: | - |
| Warranty: | 5 Years |
