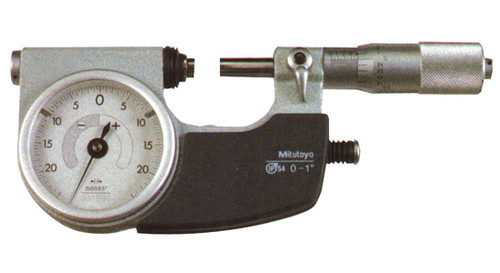

Mitutoyo Indicating Micrometer
- Retractable anvil with indicator for threewire measurements of pitch diameter of precision screws, and parallelism measurements.
- With a standard bar except for 0-25mm /0-1" model
- IP protection level: IP54
- Supplied in fitted plastic case
- Indicating Range: ±.0023"
Technical Data:
- Spindle feed error: 3µm / .00012"
- Dial indication accuracy: 1µm / .00004"
- Dispersion of indication: 0.4µm / .00002"
- Graduation: 0.001mm or .0001"
- Dial reading: 0.001mm or .00005"
- Flatness: 0.3µm/ .000012"
- Parallelism: 0.6µm/ .000024" for models up to 50mm / 2"
1µm/ .00004" for models over 50mm / 2" - Measuring force: 5-10N (500 - 1000gf)
- Measuring faces: Carbide tipped
