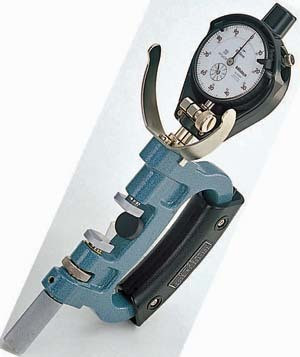

Mitutoyo Dial Snap Meter - 523-123

Mitutoyo Dial Snap Meter - 523-123

Mitutoyo

$915.48
(No reviews yet) Write a Review
SKU:
523-123
Availability:
Ships within 1 business day.
Adding to cart… The item has been added
Mitutoyo Dial Snap Meters - Series 523

FEATURES:
  • Direct GO/NO-GO judgment for massproduced parts.
  • Spindle diameter: 10.8mm (.425")
  • IP protection level: 54
  • Supplied in fitted plastic case.
Technical Data
Dial indication accuracy: 1µm / .00005”
Indication repeatability: 0.4µm / .00002”
Dial reading: 0.001mm or .00005"
Flatness: 0.3µm / .000012”
Parallelism: 0.6µm / .000024” for
models up to 50mm / 2”
1µm / .00004” for models over 50mm / 2”
Measuring force: 5 - 10N (500 - 1000gf)



!
