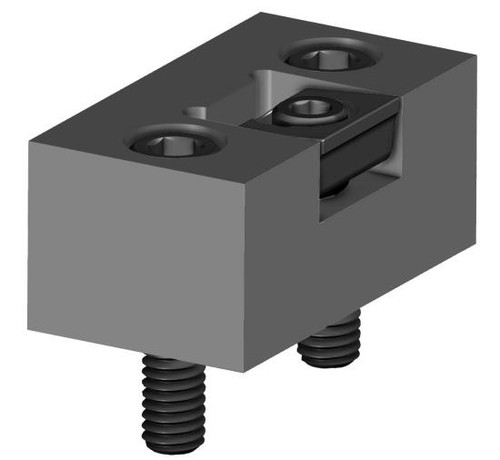

Mitee-Bite® Modular Pitbull® Clamp, Compact Medium Size, Blunt Edge, 3,600 lbf Holding Force. Use 5/16" Mounting Screws.

Mitee-Bite® Modular Pitbull® Clamp, Compact Medium Size, Blunt Edge, 3,600 Lbf Holding Force. Use 5/16" Mounting Screws. The Pitbull® Fixture Clamp Is Very Well Known For Its Low Profile And Positive Down Force. It Is Now Available As A Modular Clamp. The Compact Modular Pitbull® Clamp Is Ideal For Clamping Workpieces In Series By Using The Back Surface Of A Clamp To Locate The Next Workpiece. The Back Of The Clamp Is Ground Square To The Bottom For Precise Location Of Parts. The Height Of The Clamp Can Be Adjusted By The Depth Of The Milled Slot Used To Locate The Clamp. The Knife Edge Clamps Bite Into The Material For More Aggressive Machining, While The Blunt Edge Is Less Likely To Mark The Workpiece. Unique Features Of Pitbull® Clamps: Extremely Low Bite. Positive Down Force. High Strength A2 Tool Steel Virtually Eliminates Rip-Out. Simple, Sturdy, High Quality Design And Components. Gain Maximum Tool Access To Your Work. Virtually Eliminate Lost Work. Mitee-Bite® Part #26225
