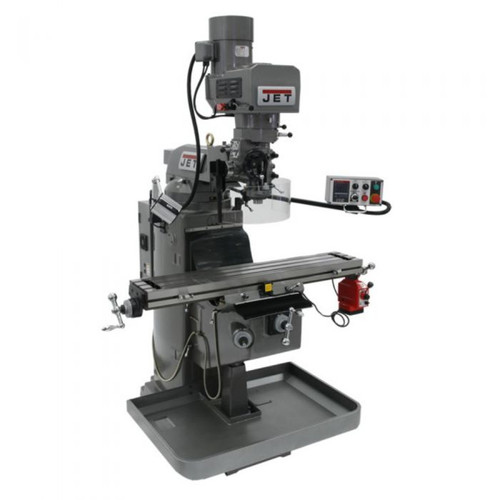

JET JTM-949EVS Mill With X and Y-Axis Powerfeeds

Jet Tools

$19,219.00
(No reviews yet) Write a Review
SKU:
JT690503
UPC:
731325451559
Adding to cart… The item has been added

Constructed using the Meehanite® casting process. The new Electronic Variable Speed Milling Machines provide consistent and reliable operation and newly designed column and base incorporates a ridged, robust design.



Features:

  • New! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
  • Swing away control box houses an e-stop and puts all controls at the operators fingertips
  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
  • Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
  • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
  • CSA/CUS Certified
  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Precision ground table and ways are hardened up to 54 RHC to a depth up to 2.0mm
  • The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
  • Standard Equipment
  • Swing away safety shield
  • LED work lamp
  • Chip pan
  • Dual locks on all moveable surfaces
  • Way covers
  • Drawbar
  • Tool box with tools



Specifications:

  • Powerfeed X and Y-Axis
  • Table Size (L x W) (In.) 9 x 49
  • Quill Diameter (In.) 3-3/8
  • Number of Spindle Speeds Variable
  • Range of Spindle Speeds (RPM) 60 - 4,500
  • Quill Down Feed Rates (IPR) .0015 - .003 - .006
  • Spindle Travel (In.) 5
  • Head Movement (Deg.) 90° R & L, 45° F & B
  • Max Distance Spindle to Table (In.) 20-3/4
  • Distance Spindle to Column (Max.) (In.) 18-1/8
  • Distance Spindle to Column (Min.) (In.) 4-3/4
  • Collet Capacity 1/8 - 7/8
  • Table Longitudinal Travel (In.) 36
  • Table Longitudinal Travel With Powerfeed (In.) 30-3/4
  • Table Cross Travel (In.) 12-5/8
  • T-Slots Number and Size (In.) 3 and 5/8
  • T-Slot Centers (In.) 2-1/2
  • Work Table Weight Capacity (Lbs.) 720
  • Travel of Knee (In.) 15-3/4
  • Travel of Ram (In.) 15-1/4
  • Saddle Width (In.) 11-1/2
  • Column Width (In.) 18
  • Inverter Type Delta, B
  • Motor (HP) 3HP, 230V, 3Ph
  • Overall Dimensions (L x W x H) (In.) 67 x 64 x 86
  • Weight (Lbs.) 2,420
