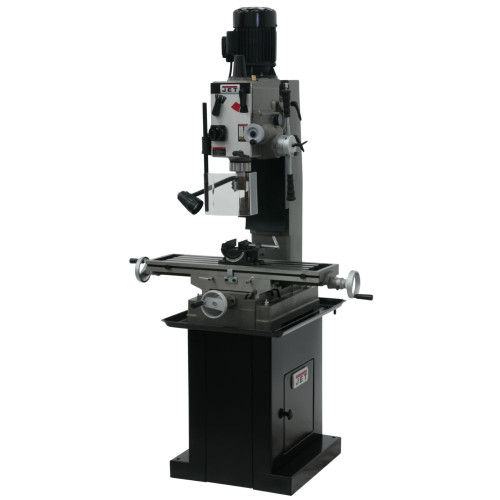

Engineered to maximize production, the heavy-duty JMD-45VSPFT variable speed Square Column Geared Head Mill Drill with power downfeed and tapping capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments.
Features:
- Heavy-duty design allows for a variety of precision drilling applications
- Full power to the cutting tools through Variable Speed geared head
- Square column with dovetail ways
- CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
- Spindle guard
- Work Lamp
- Calibrated fine down feed built in
- Easy to read internal depth gauge
- Head tilts left & right 90º
- Rapid spindle speed changes through quick-select gear shift levers
- Forward/reverse switch
- Power Downfeed standard
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Mill Drill Stand, p/n 350045, shown in some images, is optional
Specifications:
- Drilling Capacity (In.) 1-1/2
- Face Mill Capacity (In.) 4
- End Mill Capacity (In.) 3/4
- Swing (In.) 19-11/16
- Max Distance Spindle to Table (In.) 18-1/8
- Spindle Taper (In. x TPI) R8
- Spindle Travel (In.) 5
- Spindle Travel Auto (In.) 4-1/4
- Quill Diameter (In.) 3
- Column Diameter (In.) 7-7/8 x 7-5/8 Square
- Number of Spindle Speeds Variable Speed
- Range of Spindle Speeds (RPM) 50-2500
- Table Size (L x W) (In.) 9-1/2 x 32-1/4
- Table Longitudinal Travel (In.) 20-1/2
- Base Dimensions (In.) 26-11/16 x 15-15/16
- Motor (HP) 1-1/2HP, 115/230V, 1Ph
- Overall Dimensions (L x W x H) (In.) 29 x 36 x 50
- Weight (Lbs.) 767
