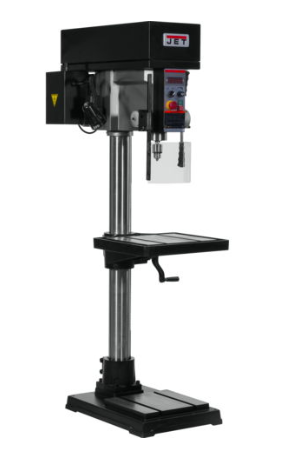

Jet JDPE-20EVSC-PDF 20in Clutch EVS Drill Press with Power Downfeed 1-1/2HP, 115V, 1Ph

Jet Tools

$4,999.00
(No reviews yet) Write a Review
SKU:
JT354251
UPC:
731325789621
Adding to cart… The item has been added

The 20'' JET JDPE-20EVS-PDF EVS drill press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Engineered to maximize output the 20’’ EVS drill press includes a three speed power down feed for heavy drilling applications and is capable of running from 50 to 2000 RPMs.

Features:

  • Heavy casted column prevents failures prolonging the life of the machine
  • Casted head for more accuracy and rigidity
  • Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support
  • Large precison ground t-slot production table
  • CSA/US Certified
  • LED machine lamp delivers extra light for more precise drilling
  • Spindle guard protects user from flying debris
  • Emergency stop allows for immediate shut off
  • Various spindle speeds from 50-2000 RPM's
  • Front mounted LED spindle RPM readout
  • 3-Speed power downfeed
  • High torque at all speeds both forward and reverse
  • Large hand grips designed with the user in mind
  • Speed changes using a clutch system
  • Speed changes using a clutch system
  • Forward and reverse switch for instant tapping mode
  • STANDARD EQUIPEMENT
  • Tapping function
  • Spindle power down feed system
  • Electronic variable speed
  • Large torque inverter
  • Speed changes using a clutch system
  • Spindle Guard
  • LED Lamp

Specifications:

  • Quill Diameter (In.) 2.16
  • Drills to Center of Circle (in) 10
  • Drilling Capacity Cast Iron (In.) 1-1/4
  • Drilling Capacity Mild Steel (In.) 1-1/8
  • Tapping Capacity Mild Steel (In.) 5/8
  • Distance Column to Spindle (In.) 26-1/2
  • Swing (In.) 19-11/16
  • Quill Down Feed Rate (Number & RPM's) No.3/ 0.005”/0.007”/0.010”
  • Number of Spindle Speeds Variable
  • Range of Spindle Speeds (RPM) Low 50 - 390 ; High 280 - 2000
  • Column Diameter (In.) 4
  • Spindle Taper (In. x TPI) MT-3
  • Spindle Travel, Manual (In.) 5
  • Spindle Travel Auto (In.) 4-1/4
  • Spindle Distance to Base (In.) 48-1/4
  • Spindle Distance to Table (Max.) (In.) 46.85
  • Table T-Slots, Number & Size (In.) 2 Slots for 5/8 bolts
  • T-Slots Number and Size (In.) 2, 1/2
  • Table Size (L x W) (In.) 16-1/2 x 18-1/2
  • Base Dimensions (In.) 17.7 x 25-1/2
  • Base Work Table (In.) 14-3/16 x 13
  • Base Slots Number & Size (In.) 2 Slots for 5/8 bolts
  • Motor (HP) 1.5HP, 230V, 3PH
  • Inverter Type JET Exclusive
  • Inverter Type / Power Source 2HP/115V/1PH
  • Overall Dimensions (L x W x H) (In.) 32-3/5 x 22-2/3 x 70-25/64
