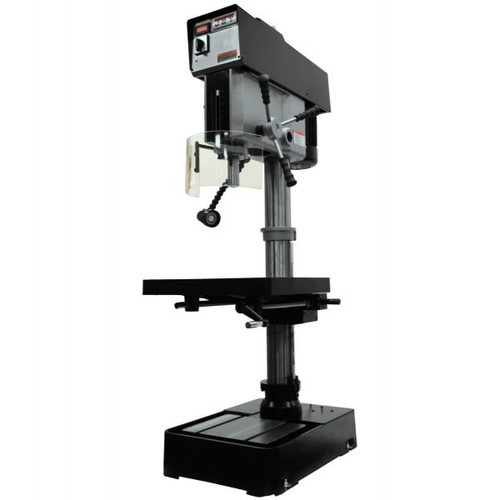

JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.
Features:
- Heavy-duty steel column for increased precision and rigidity
- Heavy Duty casted head for more accuracy and rigidity
- Large Precision Ground T-slot Production Table for easy set ups
- Latest AC Inverter Variable Speed Technology
- Spindle is supported by high quality ball bearings
- CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
- LED Machine Lamp
- Spindle Guard
- Emergency Stop
- Spindle is supported by high quality ball bearings
- Variable Spindle Speeds from 65 - 2,000 RPM's
- High Torque at all speeds both forward and reverse
- Continuous Speed Adjustment while in operation
- Front Mounted LED Spindle RPM Readout
- Forward and Reverse for Tapping
- Front Mounted Postitive Control Depth Stop
- Large Hand Grips designed with the Users comfort in mind
Specifications:
- Style (Type)Variable Speed
- Drills to Center of Circle (in)20
- Drilling Capacity Cast Iron (In.)1-1/2
- Drilling Capacity Mild Steel (In.)1-3/8
- Tapping Capacity Cast Iron (In.)N/A
- Tapping Capacity Mild Steel (In.)N/A
- Distance Column to Spindle (In.)10-7/16
- Number of Spindle SpeedsVariable
- Range of Spindle Speeds (RPM)65-540 /245- 2,000
- Column Diameter (In.)4-1/2
- Spindle Taper (In. x TPI)MT-3
- Spindle Travel (In.)6
- Spindle Distance to Base (In.)44-1/2
- Spindle Distance to Table (Max.) (In.)30-1/4
- Table Travel (In.)20
- T-Slots Number and Size (In.)3 & 5/8
- T-Slot Centers (In.)7-7/16
- Table Size (L x W) (In.)22x18-3/4
- Work Table Weight Capacity (Lbs.)154
- Base Dimensions (In.)27 x 19
- Base Slots Number & Size (In.)2 & 5/8
- Motor (HP)2 HP, 115V 1ph
- Inverter Type115V, Single Phase
- Overall Dimensions (L x W x H) (In.)38.18 x 27.16 x 79.52
- Weight (Lbs.)792
