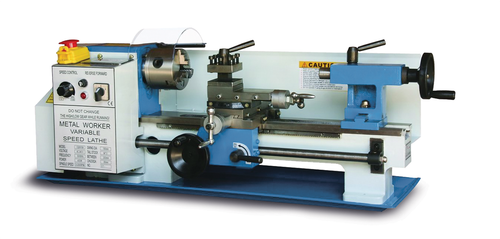

The BDB-919 benchtop lathe is perfect for the most versatile shops. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings, the BDB-919 delivers the smooth operation and rigidity needed to craft professional pieces
Features:
- Induction hardened and ground bedway
- Spindle supported by precision tapered roller bearings
- Safety on/off switch
- Emergency Stop within easy reach of the Operator
- Chuck Guard
- Quick change gearbox provides wide range of inch and metric threads
- Power longitudinal feed allows threading and reverse threading
- Quick locking tailstock
- Standard 1-1/2" x 8 TPI spindle mount allows for many aftermarket accessories
- Reversing switch for added versatility
- Full length splash guard
- Backlash adjustments provided throughout the carriage
- STANDARD ACCESSORIES
- 4" 3-Jaw Chuck
- 7-1/2" 4-Jaw Chuck
- 7" Face Plate
- Steady and Follow Rest
- 4-Way Toolpost
- Set of Tools
- MT-2 & MT-3 Centers
Specifications:
- Swing Over Bed (In.) 8-3/4
- Swing Over Cross Slide (In.) 5
- Distance Between Centers (In.) 27.5
- Spindle Bore (In.) 3/4
- Spindle Mount 1-1/2 x 8TPI
- Number of Spindle Speeds 6
- Range of Spindle Speeds (RPM) 130-2000
- Spindle Taper with Sleeve MT-3
- Number of Longitudinal and Cross Feed Rates 60
- Range of Longitudinal Feeds (IPR) 0.0006-0.0368
- Number of Inch Threads 27
- Range of Inch Threads (TPI) 8 - 56
- Number of Metric Threads 12
- Range of Metric Threads 0.5 - 3.5
- Max Tool Size (In.) 1/2
- Compound Slide Travel (In.) 1-7/8
- Cross Slide Travel (In.) 4-1/4
- Carriage Travel (In.) 26.5
- Tailstock Spindle Travel (In.) 1-9/16
- Taper in Tailstock Spindle MT-2
- Follow Rest Capacity (In.) 1-3/4
- Steady Rest Capacity (In.) 1-3/4
- Width of Bed (In.) 4-1/2
- Motor (HP) 3/4 HP, 115V, 1PH
- Prewired (V.) 115V
- Overall Dimensions (L x W x H) (In.) 41x22x20
- Weight (Lbs.) 250
