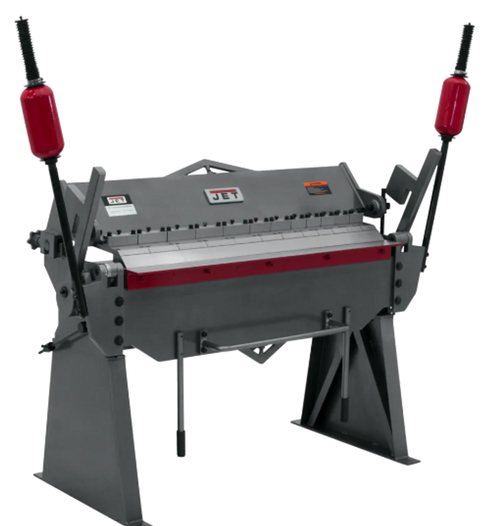

Jet 752125 BPF-1240, 40" x 12 Gauge Box & Pan Brake With Foot Clamp

Jet Tools

$3,649.00
(No reviews yet) Write a Review
SKU:
JT752125
UPC:
731325197488
Adding to cart… The item has been added

Precision and durability with innovative ergonomic features ensures ongoing accuracy and operation, without user fatigue.

Features:

  • Wide Assortment of Finger widths allow greater versatilty in the shop
  • Black Ceramic Coated Fingers prevent rust and ensue longer finger life
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Stop rod for repeatable bending
  • Material clamping is foot operated to save strain on back and arms
  • Air spring to assist in raising the clamping handle


Specifications:

  • Style (Type) Floor Box and Pan
  • Mild Steel Capacity (Gauge) 12
  • Bending Length Capacity (In.) 40
  • Maximum Box Depth (In.) 2.5
  • Maximum Lift of Beam (In.) 1-7/8
  • Number and Width of Fingers (In.) 1 ea 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10-5/8
  • Finger Nose Angle (Deg.) 42
  • Nose Radius (In.) 1/32
  • Overall Dimensions (L x W x H) (In.) 58 x 25 x 50
  • Weight (Lbs.) 705
