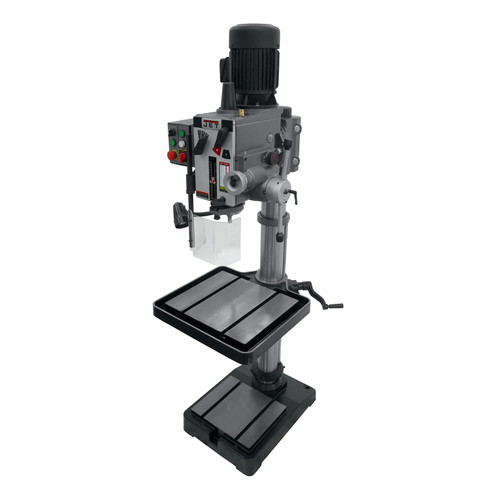

JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results.
Features:
- Heavy-duty design allows a variety of precision drilling applications
- Large production table and T-slotted base
- Easy-to-read internal depth gauge
- Three power downfeed rates
- Calibrated fine downfeed built in
- TEFC motor
- Built-in spindle lock
- Head tilts left or right
- Easily accessible table raiser
- Drill chuck arbor
- Draw bar
Specifications:
- Style (Type) Geared Head
- Spindle Taper (In. x TPI) MT-3
- Drills to Center of Circle (In.) 20
- Drilling Capacity Cast Iron (In.) 1-1/2
- Drilling Capacity Mild Steel (In.) 1-1/4
- Column Diameter (In.) 4-1/2
- Distance Column to Spindle (In.) 10
- Range of Spindle Speeds (RPM) Low - 60, 130, 230, 450, 800, 1500; High 120, 260, 460, 900, 1600, 3000
- Spindle Travel (In.) 5
- Spindle Distance to Base (In.) 44-15/16
- Spindle Distance to Table (Max.) (In.) 30-1/2
- Table Size (L x W) (In.) 21-3/4 x 19-1/2
- T-Slots Number and Size (In.) 2 - 5/8
- Work Table Weight Capacity (Lbs.) 275
- Base Dimensions (In.) 26 x 18
- Base Work Table (In.) 15-1/4 x 13
- Base Slots Number & Size (In.) 2 & 5/8
- Motor (HP) 2 HP (2 Speed) , 230V, 3Ph
- Prewired (V.) 230
- Overall Dimensions (L x W x H) (In.) 32 x 24 x 71
- Weight (Lbs.) 660
