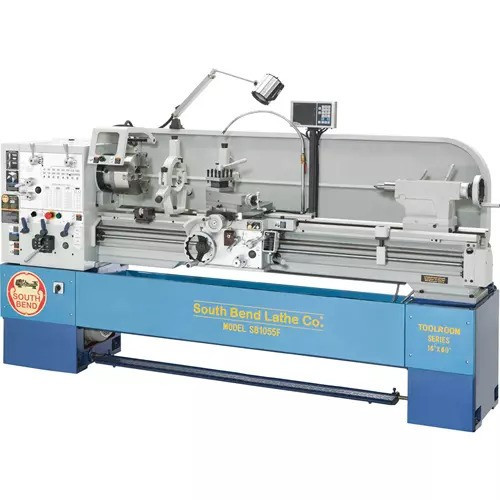

- ISO 9001 certified
- Large spindle bore 2-1/16”
- Heavy Duty spindle D1-6
- One-piece solid cast iron machine base
- Heavy Duty guideway width 10-1/4”
- Heavy Duty main motor 6 HP
- 16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
- 45 kinds of inch threads, and 39 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
Max. swing over bed 16 1/16"
Max. length of workpiece 60"
Max. swing over cross slide 10 1/4"
Max. Swing in gap 23 1/4"
Width of Bed 10 1/4"
Effective length in gap to spindle 8 1/2"
Effective length in gap to chuck jaws 3 1/2"
Spindle bore 2 1/16" D1-6
Taper of spindle center M.T. #6 (MT6/MT4 sleeve)
Spindle speeds 45-1,800 rpm / 16 steps
Longitudinal feeds 0.0018-0.07 IPR, 42 kinds
Cross feeds 0.0009-0.03 IPR, 42 kinds
Inch threads 70-2 TPI, 45 kinds
Metric threads 0.2-14 mm , 39 kinds
Diametral Pitch threads 8-40 DP , 21 kinds
Module threads 0.3-3.6 mm, 18 kinds
Max. travel of top slide 4 1/4"
Max. travel of cross slide 8 1/2"
Spindle length w/o chuck
Leadscrew length X TPI
20 1/2"
1 1/4" x 4 TPI
Diameter of tailstock quill 2 1/16"
Max. travel of tailstock quill
5"
Taper of tailstock quill center MT4
Main motor 6 HP, 220V/20A, 3 Phase
Coolant pump 1/8 HP, 220V, 3 Phase
Net weight 4,850 lbs.
Overall dimensions, LxWxH 100" x 32.2" x 56"
