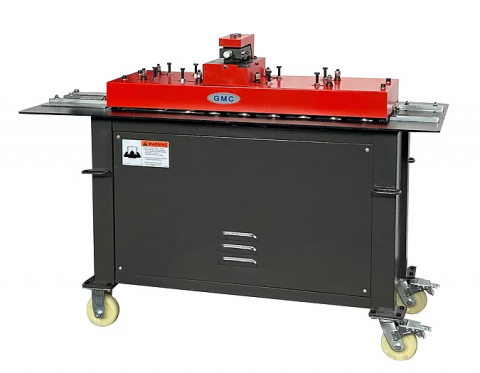

GMC Machinery 16 GA to 20 GA Pittsburgh Type Locking Forming Machine PL-16E

GMC Machinery

$9,100.00
(No reviews yet) Write a Review
SKU:
PL-16E
Adding to cart… The item has been added

Features

  • ISO 9001 certified
  • 3 HP Heavy Duty AC main motor, 220V, 3 Phase
  • Heavy welded all steel construction for maximum rigidity
  • Standard Pittsburgh Attachment
  • Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll
  • ACME side can be operated at same time

Standard Equipment

  • Standard Pittsburgh Attachment # PA-16E, installed
  • Power Flange Attachment # FA-16E, installed
  • Drive Cleat Roll # DCR-16E, installed
  • Double Seam Roll # DSR-16E, installed

Specifications

  • Capacity: 16 Ga to 20 Ga
  • Depth of Pocket: ½”
  • Feeding Speed: 23 FPM
  • Main Motor: 3 HP, 220V 3-PH
  • Weight: 630 lbs
  • Machine Dimensions LxWxH: 43” x 27” x 48”
