Standard Features
- ISO 9001 certified
- Taiwan machines
- 24” German SIKO Front Operated power back gauge w/ micro adjustment 0.004”, inch/mm digital display for “E” models (36” for HS-0625E, HS-0808E, HS-0825E)

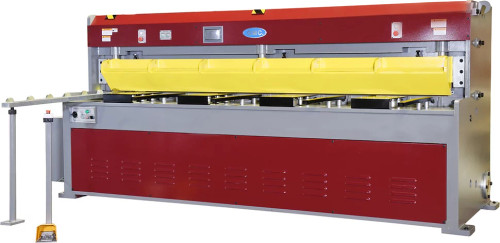

- HS-1025E comes with 36” go-to NC power back gauge with 10” touch screen
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
Included Equipment
- 24” manual back gauge (one side wheel drive) for “M” models only
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
Specifications
- Cutting Capacity:
- Mild steel: 10’ x 10 Ga.
- Stainless steel: 10’ x 14 Ga.
- Blade length: 10'
- Strokes per minute: 10-15
- Throat depth: 18"
- Worktable height: 34 1/2"
- Front support arm: 24"
- Back gauge: 36" powered B.G.
- Blade rake angle: 2 degrees
- Oil tank cap.: 45 Gal.
- Main Motor: 10 HP
- Powered B.G. Motor: 1 HP
- Machine weight: 12,850 LBS
- Machine dimensions: 178" x 95" x 65"
