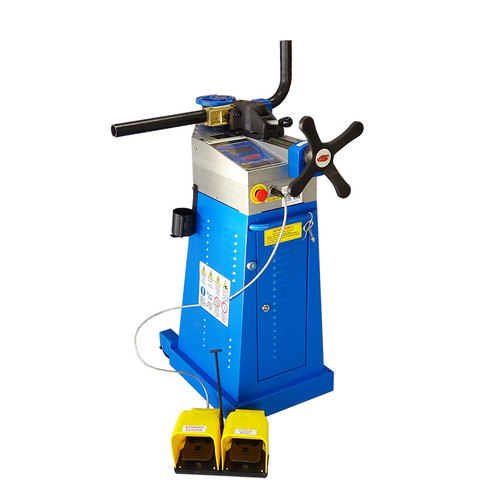

Ercolina SB48 Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.
Ercolina's affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, Ercolina machines will increase profit, as well as improve product quality and finish.
Features
- Ideal for producing consistent quality bends in pipe, tube, squares, solids, and other profiles
- Touch screen programming of bend angle with system diagnostics in multiple languages
- Touch screen indicates digital display of bend angle, springback, and bend speed for each angle within the program
- Bend any angle to 180° with independent material springback compensation for each bend
- Quick-change tooling system with multiple radii available
- Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
- Automatically stops at desired bend angle to end cycle
- Use control panel or foot pedal to initiate bend and return functions
- Counterbending die position monitored electronically for accuracy and repeatability
- Accepts Ercolina's A40-P two axis positioning table for multiple and sequential bends
- Portable with base wheels and lift handle
- No hydraulic components
Specifications
- Tube Capacity (min): 1/4"
- Tube Capacity (max): 2"
- Pipe Capacity (max): 1½″ Sch. 40
- Centerline Radius (min): 2 x Ø
- Centerline Radius (max): 8â…ž″
- Degree of Bend: 0-210°
- Bending Speed: Variable
- Programming
- Touch screen
- Program storage
- Multiple bends per program
- Voltage: 110V Single Phase
- Dimensions (LxWxH): 22½″ x 16¼″ x 39½″
- Weight: 300 lbs
Bending Capacities
- Pipe
- Max Diameter: 1½″
- Max Wall Thickness: Sch. 40
- Mild Steel Tube
- Max Diameter: 2.000"
- Max Wall Thickness: 0.140"
- Soft Brass
- Max Diameter: 1 7/8"
- Max Wall Thickness: 0.120"
- Stainless Steel
- Max Diameter: 1 7/8"
- Max Wall Thickness: 0.065"
- Hydraulic Tube
- Max Diameter: 2.000"
- Max Wall Thickness: 0.120"
- Hard Copper & Aluminum
- Max Diameter: 2.000"
- Max Wall Thickness: 0.065"
- Round Solids
- Max Diameter: 1¼"
- Rectangular Solids
- Max Diameter: 0.312" x 1-7/8"
- Rectangular Tube
- Max Diameter: 3/4" x 1-5/8"
- Max Wall Thickness: 0.120"
- Square Tube
- Max Diameter: 1½″ x 1½″
- Max Wall Thickness: 0.120"
- Solid Square
- Max Diameter: 1¼" x 1¼"
TubeKit2 Includes
- ¾” Tube
- CLR: 2.6
- Min Wall: 0.035
- â…ž″ Tube
- CLR: 2.6
- Min Wall: 0.035
- 1” Tube
- CLR: 3.2
- Min Wall: 0.035
- 1 ¼” Tube
- CLR: 4.4
- Min Wall: 0.035
- 1 ½” Tube
- CLR: 5.9
- Min Wall: 0.049
- 1 ¾” Tube
- CLR: 6.7
- Min Wall: 0.065
