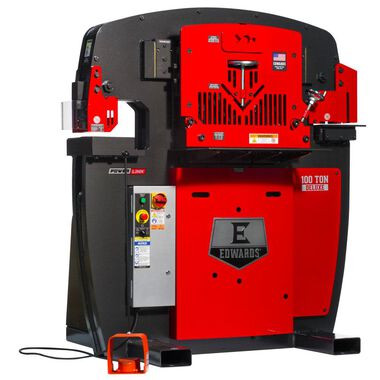

Edwards 100 Ton Deluxe Ironworker 575V, 3PH

Edwards 100 Ton Deluxe Ironworker 575V, 3PH

Edwards

$42,289.00
(No reviews yet) Write a Review
SKU:
ED9-IW100DX-3P575
UPC:
731325555875
Adding to cart… The item has been added

The 100 Ton Deluxe Ironworker produces greater cycle times and increased operation speed with its 10 HP motor. The 5 Workstations include a 18" wide flat bar shear and integrated rod shear while accepting 10 additional Attachments and 15 Accessories. Extremely powerful and durable, designed for heavy-duty use made in the USA, this Ironworker can handle anything you throw at it.

Adjustable electric stoke control
Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
ANSI B11.5-1988(02) Compliant Guarding
Bright LED lights increases visibility
Electric foot pedal with integrated jog control
ETL Certified Controls
Five Workstations: Standard (5) - Punch, Flat Bar Shear, Angle Shear, Coper Notcher, and Rod Shear
Optimized workstation heights for improved efficiency
Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life


Stock Number ED9-IW100DX-3P575
Amps 10
Angle Shear Max Capacity 1/2" 6 x 6
Angle Shear Max Capacity (In.) 6 x 6 x 1/2
Angle Shear Work Height (In.) 43-15/16
Coper Notcher Max Capacity (In.) 3 x 6 x 1/2
Coper Notcher Work Height (In.) 42
Flat Bar Shear Max Capacity 1" 10
Flat Bar Shear Max Capacity 1/2" 18
Flat Bar Shear Max Capacity 3/4" 14
Flat Bar Shear Max Capacity (In.) 1/2 x 18, 3/4 x 14, 1 x 10
Flat Bar Shear Max Round Capacity (In.) 1
Flat Bar Shear Max Round (In) 1
Flat Bar Shear Max Square (In) 1
Flat Bar Shear Rating (Tons) 100
Flat Bar Shear Work Height (In.) 37
Gross Weight (Lbs) 5180
Hydraulic Pump (GPM) 24
Hydraulic Reservoir (Gal.) 17
Hydraulics (GPM) 24
Hydraulics (PSI) 3800
Model Number IW100DX-3P575
Motor Amps 8
Motor (HP) 7.5 HP 3 ~ 575V
Motor Speed (RPM) 1770
Overall Dimensions (L x W x H) (In.) 56 x 45-1/2 x 63-1/8
Product Dimensions (In.) 56 x 45-1/2 x 63-1/8
Prop 65 Cancer and Reproductive Harm
Punch Max Capacity (In.) 1-1/16 diam. in 1 mild steel
Punch Open Height (In) 8-3/4
Punch Rating (Tons) 100
Punch Shut Height (In) 6-13/16
Punch Stroke (In.) 1-15/16
Punch Work Height (In.) 39-3/8
Rating (Tons) 100
Reservoir (Gal.) 17
Rod Shear Max Round (In) 1-1/2
Rod Shear Max Square (In) 1-1/4
Rod Shear Work Height (In) 54-1/2
Shipping Dimensions (L x W x H) (In.) 60 x 67 x 69
Valve Pressure (PSI) 3800
Weight (Lbs.) 5180

!
