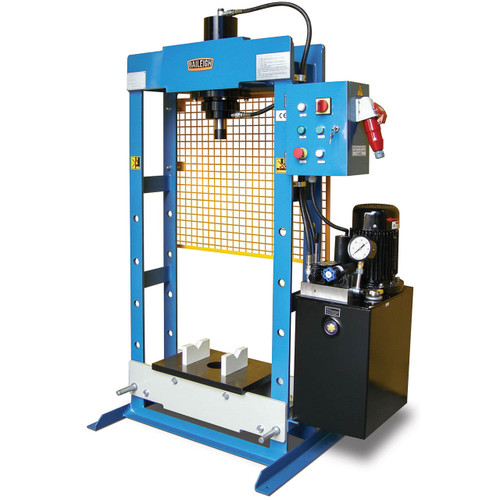

With its sturdy plate steel construction and piston-style hydraulic pump, this 30-ton hydraulic press for sale offers one of the best values on the market.
30-ton capacity hydraulic press.
27.5” working width.
5.74” diameter cylinder with 9.8” stroke.
3 hp motor runs on 200-volt single-phase power.
Cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects.
Comes standard with a pressure gauge.
Includes 2-piece V-block.
Rear safety cage included(not shown in pictures)
Fully-welded steel frame enables you to use the machine’s force at full capacity without worrying about flexing.
Baileigh covers this hydraulic shop press with a 1-year parts warranty as well as lifetime technical support by phone.
Stock Number BA9-1012401
Model Number HSP-30M
Prop 65 Cancer and Reproductive Harm
Weight (Lbs.) 1060
Cylinder Movable Yes
Distance From Table To Ram Min. 9.84" - Max. 41.34"
Piston Diameter (In.) 2"
