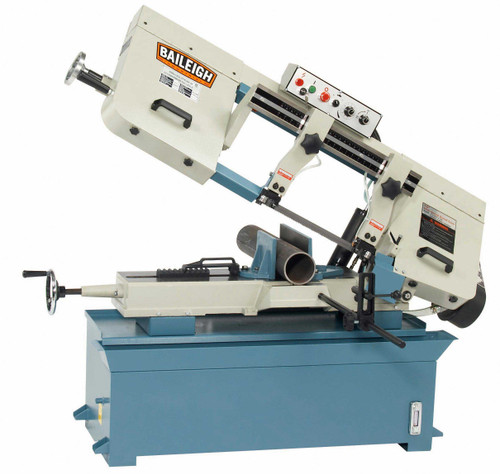

You can control the descent of the BS-210M horizontal band saw in 2 ways: manually (with a trigger switch) or with a hydraulic descent features—usually seen only on more expensive models. Order this industrial horizontal band saw today!
- With a good mix of features at an economical price, this horizontal metal bandsaw is ideal for small-to-medium machine shops or even garage or home shops.
- 1 hp motor requires only 110 volts to run, so you can use it anywhere.
- 6.692” round maximum capacity at 90°.
- Swivel head miters up to 60° and doesn’t compromise the holding power of the vise.
- Cast iron saw head and bow reduce vibrations and help to produce clean, accurate cuts.
- Accepts standard .75" blades.
- You can adjust the infinitely variable blade speed from 66 to 280 fpm, controlled by an inverter, to produce quality cuts and prolong blade life.
- Adjustable blade guides, attached to sealed ball bearings, get as close to the material as possible to keep alignment straight and prolong blade life.
- Control the hydraulic descent pressure and choose the right speed to make a perfect cut for a given application.
- No need to monitor the machine! You can walk away; the blade will automatically stop once it’s done cutting the metal.
- Fully-welded steel plate frame stabilizes the machine and gives it the structural strength to cut at maximum capacity without straining.
- Baileigh covers this metal band saw with a 1-year parts warranty.
- Both the saw and replacement parts are usually in stock for fast deliveries.
- Lifetime technical support by phone lets you call our knowledgeable reps up whenever you need troubleshooting or advice on applications.
SPECIFICATIONS
Item Number | BS-210M |
---|---|
Motor Hp | 1 |
Return | Manual |
Miter Adjustment | Swivel Head |
Miter Angle | 0 – 60° |
Motor | High Torque .75Kw (AC) |
Included Accesories | Included Accesories |
Capacity Rectangular | 8.26" x 6.69" |
Capacity Round 90°/ 45° / 60° | 6.692" / 4.724" / 2.755" |
Capacity Square 90°/ 45° / 60° | 6.692" / 4.375" / 2.44" |
Table Height | 35.1" |
Blade Guide | Carbide x Roller |
Blade Size | .75" x .035" x 83" |
Blade Speed (fpm) | 66–280 Variable |
Descent Control | Hydraulic |
Drive | Gear |
Power | 110V |
Shipping Weight | 545lbs |
Shipping Dimensions (Inches) | 60x44x40 |
* specifications subject to change without notice.
