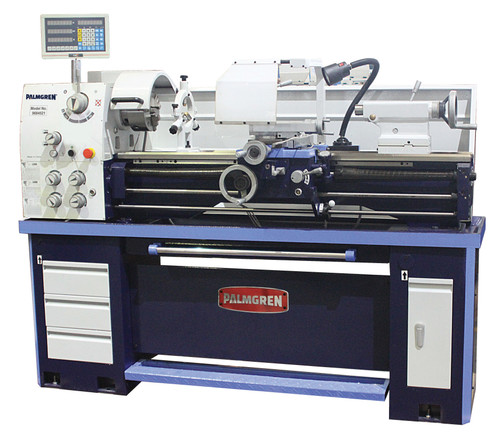

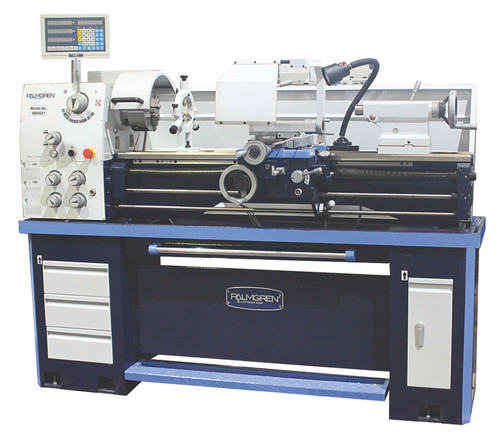

Palmgren's 11" bench lathe engine lathe delivers the precision , power, and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast iron construction, smooth power transmission , precision thrust, and ball bearings in the head stock and spindle, hardened and ground ways all designed to give you years of trouble-free, precise turning. Built and inspected to the DIN 8606 toolmakers precision lathe standard assuringaccuracy and consistent performance. This bench lathe is the right choice for turning small metal parts and is used in proto type shops, tool rooms, fabrication shops, maintenance shops, jewelry manufacturing, and by home/hobby machinists. The lathe features a 3 Jaw lathe chuck, 4 way tool post, chip tray,and splash guard. Centers, a tailstock with adjustable precision scale of 0.02 mm / 0.001 in, and a safety lathe chuck make this the turning machine for you. The all gear drive transmission on the mill delivers full power at any speed driving the cutting tools at nearly 100 percent of available horsepower and torque. With such a wide range of versatility, this all-purpose combination lathe/mill is on of the most functional manual machine centers that can operate in all types and sizes of shops. The mill comes with an all steel gear drive train, electronic variable speed, and 2 MT machine tools spindle with guaranteedconcentricity of 0.0005 in at the spindle nose. With a box column with hardened, groun
- Dual P5 tapper roller bearings on spindle
- Prismatic bed of solid aged cast iron - hardened to HRO 45 - 52 for long life
- Feed lead screw is supported and runs on two bearings
- Feed gear box is constructed of helical steel gears running in an oil bath
- Fast easy feed speed and direction changes with front mounted selector handles
- Precision machined slide with adjustable hand wheels with 0.002 " / 0.001 " scales
- Tailstock with adjustable precision scale of 0.02 mm / 0.0008 "
- 3 Jaw lathe chuck
- 4 Way tool post
- Safety lathe chuck and tool post guards
- Centers
- Chip tray and splash guard
- Electronic variable speed ( MILL)
- All steel gear drive train (MILL)
- Built-in work light (MILL)
- Box column with hardened, ground and hand scraped ways (MILL)
- 2 MT machine tools spindle with draw bar (MILL)
- Precision machine tool spindle with guaranteed concentricity of .0005 " at the spindle nose (MILL)
